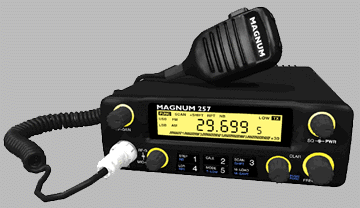

Magnum 257 (Magnum Intl.(Div. of RF LTD.))
|
|
|
ID # 29
|
| Magnum
257, 10 Meter Mobile Amateur Radio.
FEATURES
* Microprocessor Controlled
* Variable RF Output Power
* 5 Digit LCD Frequency Display
* S/RF Meter
* Frequency Scan
* Noise Blanker
* Last Channel Recall
* Automatic Call Frequency Control (FM 29.600 MHz)
* Receive Audio Tone Control
* Scanning Microphone
* Offset (Split) Frequencies
* Night Illuminated Display
* 1 Year Warranty
* MARS and CAP Capable (permits required)
|
| GENERAL
SPECIFICATIONS
Frequency Coverage
...... 28.000 - 29.699 MHz
RF Power Output
.... 30 Watts PEP
Modes .......
AM, FM, USB, LSB
Tuning Steps
.... 1 kHz, 10 kHz or 100 kHz
Memory Channels
.... 5 Channels
Antenna Impedance
.... 50 ohms, unbalanced
Power Requirement
..... 12 - 16 Volt DC
Dimensions ......
2(H) x 6(W) x 7.5(D) in
Weight ........
2.9 lbs. (approx.)
TRANSMITTER SPECIFICATIONS
Frequency Response
.... 400 - 3500 Hz
Frequency Tolerance
..... 0.0005%
Frequency Accuracy
....... +10 ppm or better
Carrier Suppression
...... -40 dB or better
Unwanted Sideband
.... -50 dB or better (1 kHz tone)
Spurious Emission
.... -50 dB or better
FM Deviation ......
+/-2 kHz
Current Consumption
... 6 amps at max. output
Microphone Impedance
.... 600 ohms, ECM
RECEIVER SPECIFICATIONS
Circuit Type...........................
Superheterodyne,
Dual Conversion
Intermediate Frequencies.....
1st : 10.695 MHz
2nd : 455 kHz
SSB : 10.695 MHz
Sensitivity (10 dB S+N/N).....
SSB : 0.25µV
FM : 0.3µV (dB SINAD)
AM : 0.5µV
Selectivity.............................
AM / FM : 6.0 kHz (-6 dB)
AM / FM : 18 kHz (-60 dB)
SSB : 4.2 kHz (-6 dB)
SSB : 8.5 kHz (-60 dB)
RIT Variable Range...... +/-1.5 kHz
Squelch Range........ 0.6µV to 1mV
Image Rejection....... 80 dB or better
Adjacent Channel Rejection..
AM / FM : 60 dB
SSB : 70 dB
Audio Output Power.. 2.0 watts into 8 ohms
THD......................... 5% or better at 500mW
Current Consumption............
1.5 amp at max. output |
NOTICE:
10 - Meter Radios are intended for use by amateur radio operators only.
A license from the FCC is required for transmission in the U.S.A.
Transmission without a license is unlawful.
Warranty by manufacturer only. All worrany work if necessary must be returned and handled by the manufacturer.
|
Specifications, price and availability are subject to change without notice.
Gross Weight: 5 lbs.
|
|
|
|
