LIDAR-Lite v3
LIDAR-Lite v3 (Garmin)
ID # 010-01722-00    Reg. Price: $129.99     Our Price: $124.95


High-performance Optical Distant Measurement Sensor

  • Reliable and powerful ranging and proximity sensor for drone, robot or unmanned vehicle applications
  • Compact, lightweight with low power consumption
  • User-configurable allows adjustment between accuracy, operating range and measurement time
  • Communication via I2C and PWM
  • Requires a power source and an external micro-controller running an application

LIDAR-Lite

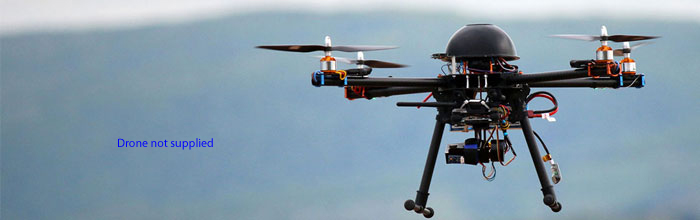

When space and weight requirements are tight, the LIDAR-Lite v3 soars. It’s the ideal compact, high-performance optical distant measurement sensor solution for drone, robot or unmanned vehicle applications. Using a single chip signal processing solution along with minimal hardware, this highly configurable sensor can be used as the basic building block for applications where small size, light weight, low power consumption and high performance are important factors.

Featuring all of the core features of the popular LIDAR-Lite v2, this easy-to-use 40 meter laser-based sensor uses about 130 milliamps during an acquisition. It is user-configurable so you can adjust between accuracy, operating range and measurement time.  It’s reliable, powerful ranging and it’s the proximity sensor you need.

Requires a power source and an external micro-controller running an application.



In the box:

  • LIDAR-Lite v3
  • Cable
  • Manual

Specifications:

  • Unit size (HxWxD): 40 x 48 x 20 mm (1.6" x 1.9" x 0.8")
  • Weight: 22 g (0.77 oz)
  • Resolution: 1 cm
  • Accuracy: +/- 2.5 cm at distances greater than 1 meter. Refer to operating manual for complete operating specifications.
  • Range: 0-40 meters
  • Update rate: up to 500 Hz
  • Interface: I2C or PWM
  • Power (operating voltage): 4.75-5 VDC; 6 V Max
  • Current consumption: 105ma, idle; 130ma, continuous
  • Operating temperature: -20 to 60° C
  • Laser wave length/Peak power: 905 nm/1.3 watts
  • Beam divergence: 4 m Radian X 2 m Radian
  • Optical aperture: 12.5 mm
  • Regulatory approvals: CLASS 1 LASER PRODUCT CLASSIFIED EN/IEC 60825-1 2007. Complies with U.S. FDA performance standards for laser products except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007. System contains no user serviceable components. Repair or service of the system is only to be handled by factory trained technicians. No service by the user is allowed.

Operation Manual and Technical Specifications

Important Safety and Product Information


Volume Discounts: order 10 to 29 and get 7% off
                            order 30 to 99 and get 14% off
                            order 100 and get 20% off



Specifications, price and availability are subject to change without notice.
Gross Weight: 1  lbs.

Has Accessories ...List PriceOur Price
Cable
010-12524-00Cable (LIDAR-Lite v3)$4.95
