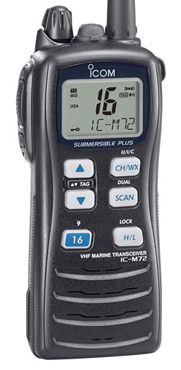

IC-M72 (Icom America)
|
|
|
ID # ic-m72
Reg. Price: $325.00
Our Price:
Click ORDER to order or see our price.
|
Features:
The radio with MORE
Compact Body, Great “Form Factor”
A compact design, hourglass body-shape and comfortable side grips give the IC-M72
an outstanding “form factor” – it™s easy to use with just
one hand!
Highest available power! 6 Watts
The IC-M72™s 6 Watts*1 of transmit power
can carry a conversation a long way. A large capacity 2000mAh Lithium-Ion battery
allows for 15–16 hours of operation, under normal conditions*2.
*1 5W for Australia version,
*2 5% Transmit, 5% Receive, 90% Stand-by
Impressive Force5Audio
The M72™s impressive audio output (600mW typ.*)
is loud enough to hear in most any marine environment – even over loud engine
noise.
*10% distortion, 8Ω load
Submersible PLUS (IPX8)
The IC-M72 offers Icom™s best-ever protection against water intrusion. This
radio has been tested to survive after being submersed in 1.5m (4.9ft) depth of
water for 30 minutes.
Wide Viewing Angle LCD
A wide viewing angle, high intensity LCD is used in the IC-M72, offering bright,
easy to read characters. The bright LCD backlighting and backlit keypad is great
for night time operation.
30% Shorter Antenna
The IC-M72™s antenna is engineered to perform with typical Icom efficiency
even though it is nearly 30%* shorter than previous
Icom marine antenna.
* IC-M72™s antenna length is 115mm; 417/32
in.
Additional Features
- Auto scan function to start scanning when receiving no signal
- Auto power save function
- Battery indicator shows remaining battery power in 4 levels
- Instant access to Ch. 16 and Ch. 9 (or call channel)
- Auto WX scan and WX Alert function
- Simple add/delete TAG scanning operation
- Built-in UT-112 compatible voice scrambler (Depending on version)
- AquaQuake draining function emits a vibrating sound and clears water away from the
speaker grill
Specifications
|
General |
|
Frequency range
Tx
Rx
|
156.025 - 157.425 MHz
156.050 - 163.275 MHz
|
|
Usable channels |
USA, INT, CAN*, WX
channels
*Depending on version
|
|
Type of emission
|
16K0G3E (FM), 16K0G2B (DSC)
|
Current drain (at 7.5V DC)
Tx
Rx |
|
6W output |
1.7A typical |
|
5W output |
1.5A typical |
|
Internal SP |
400mA typical (AF Max.) |
|
External SP |
200mA typical (AF Max.) |
|
|
Operating temp. range |
–20°C to +60°C; –4°F to +140°F |
|
Antenna impedance |
50Ω (SMA)
|
|
Dimensions (W×H×D)
(projections not included)
|
52.5 × 125 × 30 mm
21⁄16×429⁄32×13⁄16
in.
|
|
Weight (approx.) |
280g; 9.9oz (with BP-245)
|
|
Transmitter |
Output power (Hi/Mid/Low)
Australia version
|
6/3/1W
5/3/1W |
|
Max. freq. deviation |
± 5.0 kHz |
|
Frequency error |
± 10.0ppm |
|
Spurious emissions |
–68dBc typical
|
|
Adjacent channel power
|
70dB |
|
Hum and noise ratio
|
40dB |
|
Audio Harmonic distortion
|
Less than 10% (at 60% mod.)
|
|
Receiver |
|
Sensitivity (12db SINAD)
|
0.22µV typical
|
|
Squelch sensitivity
|
0.35µV typical (at threshold)
|
|
Adjacent channel selectivity |
70dB typical
|
|
Spurious response |
70dB typical
|
|
Intermodulation rejection
|
70dB typical
|
|
Hum and noise ratio |
40dB |
|
Audio output power
Internal SP
External SP
|
(at 10% distortion with an 8Ω load)
0.6W typical
0.35W typical
|
Measurement made in accordance with TIA/EIA-603. All stated
specifications are subject to change without notice or obligation.
Supplied accessories
- Battery Pack, BP-245
- Battery Charger, BC-166
- AC Adapter, BC-147A/BM-95V*
- Antenna, FA-S64V
- Belt clip, MB-103
- Hand strap
*Depending on version
|
Specifications, price and availability are subject to change without notice.
Gross Weight: 3 lbs.
|
|
|
|
