— CW, FM, AM, USB, LSB Mode	— NOA Weather Channels With Scan
— Built-in 6 Digit Frequency Readout	— Weather Alert On/Off Switch
— Large Frequency Selector Knob	— Variable Dimmer Control
— Improved Receiver Design	— 2 Color Xmit/Rcv Indicator
— Advanced Noise Filter Circuit Switch	— Automatic Noise Limiter Switch
— Large Iluminated SWR Meter	— Large Illuminated S/RF Meter
— RF Gain/SWR/Cal Switch	— Seperate SWR Cal Control
— Noise Blanker Switch	— Seperate Adjustable Volume/Squelch Control
— RF Gain Control	— 2 Stage Clarifier Control
— Mic Gain Control	— Dynamic Mike Included
— End of Transmission Signal Tone	— Echo Tone
— Adjustable Talk Back Control	— Front Panel Headphone Jack
— External Headphone Jack	— External Speaker Jack
— Built in Voltage Overload Protection	— Variable RF Power Output Control

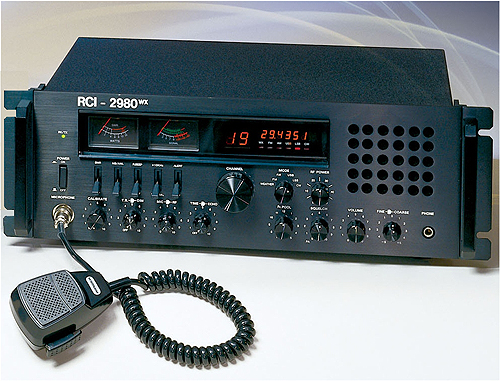

Completely re-designed internally, the RCI-2980WX rack-mount style unit features a new 6 digit red LED readout, exceptional sound quality and large, easy-to-use controls. It offers AM-CW-FM-SSB modes of operation, variable power, superior noise filtering and built-in heavy duty AC power supply.

The RCI-2980WX has a full complement of front panel extra features, including large dual panel meters that display received signal strength, transmitter power output and antenna SWR. You will also find the clarifier has been expanded to include a separate coarse and fine tuning for above and below the selected frequency that provides the ability to precisely select the clearest signal for improved reception under difficult conditions.

The RCI-2980WX delivers 25 watts PEP output power. The versatile and economical radio also features a rear panel frequency meter output for measuring transmit operating frequency.

The RCI-2980WX now offers the ability to receive signals from your local NOAA Weather Channels insuring that you will have the coverage for your area. The unit will scan all 7 channels and lock in on the strongest signal. Also included is a NOAA Emergency Alert Tone to warn of impending severe weather warnings and conditions.

RCI-2980WX Specifications

General	RCI-2980WX
Frequency Range	28.015 - 29.655 MHz
Tuning Steps	10 KHz
Emission	USB, LSB, CW, AM, FM
Clarifier Range	±5 KHz
Frequency Tolerance	0.005%
Frequency Stability	0.001%
Operating Temperature Range	- 20 ºC to + 50 ºC
Meters	Left: RX Signal Strength Right: RF Output, Antenna SWR
Antenna Impedance	50 W
Input Voltage	110 VAC, 60 Hz ( 220 VAC, 50 Hz Optional )
AC Power Consumptions	90 Watts
Microphone	400 W Dynamic PTT - 4 Pin
Size (W x D x H)	19" x 12" x 6-1/4"
Weight	25 lb 3 oz
Shipping Weight	28 lb.
Transmitter
RF Power Output	10 Watts RMS: CW / AM / FM: 25 Watts: SSB (PEP)
Modes	USB, LSB, CW, AM, FM
Carrier Suppression	Better Than 60 dB
Spurious Emission	More Than 60 dB
Antenna Connector	Standard SO-239 Type
Output Impedance	Unbalanced 50 W
Receiver
Sensitivity	AM / CW: 0.7 µV for 10 db SINAD FM: 0.5 µV for 12 db SINAD SSB: 0.2 µV for 10 db SINAD
AM / FM Selectivity	50 db at 10 KHz
SSB Selectivity	5 db at 2 KHz, 60 db at 4 KHz
Image Rejection	More than 50 db
IF Rejection	More than 80 db at 455 KHz
Audio Output Power	2.5 Watts @ 10% THD
Intermod Rejection	> 50 db
Noise Blanker	IF Single Gate Type
Built In Speaker	8 W
External Speaker	Disables Internal Speaker When Connected, 8 W
Weather Band
Frequency Range	162.400 to 162.550 MHz 0.25 µV U/L SB
Modulation	FM ± 5 KHz Deviation
Sensitivity	Less then 1 µV for 12 db SINAD
WX Emergency Warning	Phase Lock Loop, 1050 Hz
Audio Output Power	4 Watts
Type	Single Conversion Superhet, 455 KHz IF
