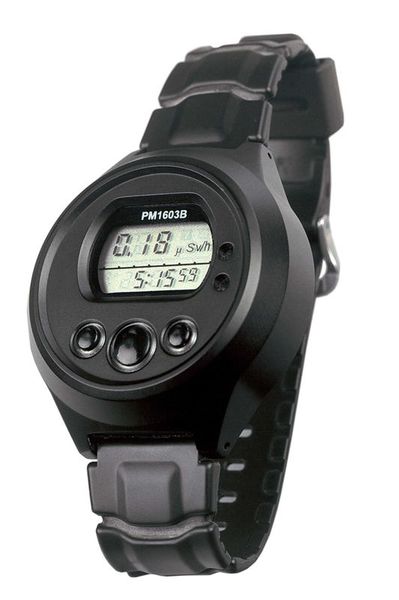

Polimaster PM1603B Wrist Gamma Dosimeters is a miniature, energy-compensated dosimeters designed to monitor the gamma radiation environment as well as precisely measure the ambient dose equivalent H*(10) and ambient dose equivalent rate H*(10). The instruments' ability to compensate for energy variations allows these wrist gamma dosimeters to accurately measure the dose and dose rate of gamma radiation in a wide energy range.

Recommended for professionals who work with or around the radioactive materials. The PM1603B perform the following functions:

• Monitoring and measurement of the ambient dose equivalent H*(10) and ambient dose equivalent rate H*(10) across wide energy range: from the natural background level up to 5-10 Sv/h (500-1000 R/h);
• Alerting the user through an audible alarm when the preset dose and/or dose rate thresholds are exceeded;
• Recording and storing data for up to 1000 events in their non-volatile memory;
• Transmitting all recorded data via an infrared channel to a PC for further processing and analysis.

To protect users from overexposure, the dosimeters have two alarm thresholds. If the preset dose and dose rate thresholds are exceeded, the dosimeter immediately alerts the user of the danger of irradiation through an audible alarm.

The instrument's hermetic and shockproof case and the fluorescent backlight on LCD screen allow for easy operation and precision even in the most harsh and unfavorable environments or weather conditions.

If the dosimeter is contaminated with radioactive dust, it can be easily cleaned with radiation decontamination solutions.

Applications:

• Customs and Border Control
• Health Physics and Medicine
• Individual Radiation Protection
• Security and Police
• Uranium Mining and Nuclear Fuel Production

Detector	GM tube
Dose Rate display	0.01 µSv/h - 13.0 Sv/h (1 µR/h -1300 R/h)
Dose Rate Accuracy (H  dose rate, µSv/h)	±(15 + 0.02/H + 0.002H) % (in range 1 µSv/h - 10.0 Sv/h)
Dose measurement	0.01 µSv - 9.99 Sv (1 µR - 999 R)
Dose Accuracy	±15% (in range 1 µSv - 9.99 Sv (100 µR - 999 R))
Energy range	0.048 - 3 MeV
Energy response relative to 0.662 MeV (Cs-137)	±30%
Survive after momentary influence of maximum permissible gamma radiation within 5 min:	100 Sv/h (10000 R/h)
Standards compliance	meets most relevalnt parts of ANSI N42.33(2) and IEC 60846
Alarm type:	audio
Physical Parameters
Dimensions	50 x 56 x 19 mm (2'' x 2'' x ½'')
Weight	85 g (3 oz)
Environmental Characteristics
Temperature	-20 up to +70°C ( -4 up to +158°F)
Humidity	up to 98% at 35°C (95°F)
Environmental protection	IP67
Drop test	1.5 m (4.9 ft)
Water resistant	1 m ( up to 3.3 ft)
Power
Batteries	One CR 2032 Lithium battery
Battery lifetime	9 months
Battery discharge control	Pictogram on LCD
Additional
Countdown timer	yes
Display of time to critical exposure
Functions	minutes, hours, day of the week, date, month, year
Calendar mode	alarm clock, timer, stop watch
PC Communication	IRDA
