Manta

TR151-TK -CA (Canada)
No Longer Available    TR151-TK -CA (Canada) (USGlobalSat)
ID # TR151TKCA

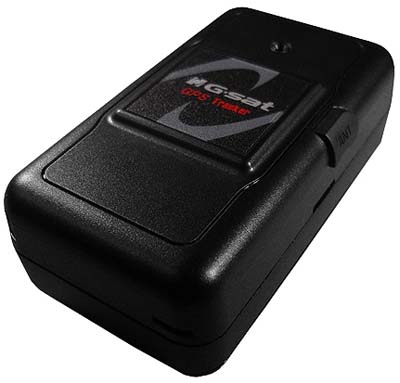

TR-151 Personel Asset Tracker

The TR-151 is a personnel or asset tracking device with fast acquisition times.

It's compact, portable and stylish. Designed to work around the GPS / GSM / GPRS wireless networks.

The TR-151 is designed as a tracking/monitoring device for personnel or asset tracking applications using GPS and GSM technology. Specified recipients can retrieve the location of the TR-151 without the need for interaction from the person, or vehicle carrying the device.

Protected in a durable, water-resistant housing, the TR-151 is suitable for use in a wide variety of applications, with a dedicated battery life of 18hrs to 4.5 days.

As an added safety feature, a built-in SOS panic button will send an emergency notification alert along with GPS coordinates of the user to a specified contact.

The User can easily configure the TR-151 via USB, SMS or GPRS. The TR-151 also includes voice monitoring, and Geofence functions.




The person giving the device can at any time instantly receive a text back with the device's location, or track at all times with your web portal. The device can be tracked with a "bread crumbing" feature that creates a trail of the device's route and alerts you when it's reached it's destination, and a geofence feature that alerts the watcher of the device when the user has traveled outside of a digital fence created within the web portal.

TR-151 Personnel Asset Tracker Sim Card

A sim card will be supplied for you in the box ready to be activated with the appropriate data plan that you require.

TR-151 Downloads

User Guide
TR Management Center

Disclaimer:

Star Lite International, LLC, USGlobalSat, Inc. its subsidiaries, and partners assume no responsibility for any unlawful misuse of this product. By purchasing this product, you agree that you will use them in a lawful manner. It is the sole responsibility of the buyer to consult legal counsel regarding local, state and federal laws in relations to using our GPS products.



Package Contents:
* TR-151 (main unit)
* USB Interface Cable
* CD-ROM
* 110VAC Charger
* 12VDC Charger
* Lithium-Ion Rechargeable Battery
* Magnetic Mounting Bracket

***REQUIRES SIM CARD w/DATA PLAN TO FUNCTION *** (SIM Card for Canada is Not included)

Specifications:
General Specifications
USB Connector
Mini USB
USB Version
Ver 1.1 (Active Sync)
Operating Temperature
-4°F to 131°F /-20 ° to 55°C
Humidity
5% to 95% Non-Condensing
GPS Specifications
GPRS
Class 10
GSM module
TR-151A: Siemens TC65GSM 850/1800/1900
GPS Chipset
MTK
Frequency
L1, 1575.42 MHz
C/A Code
1.023 MHz chiprate
Channels
20 channel all-in-view tracking
Horizontal Position Accuracy
10 Meters, 2D RMS
Velocity Accuracy
0.1 m/s
Default Datum
WGS-84
Acquisition Rate
Hot Start
1 Sec., Average
Warm Start
38 Sec., Average
Cold Start
42 Sec., Average
Dynamic Condition
Altittude Limit
18,000 Meters (60,000 Feet) Max.
Velocity Limit
515 Meters/Second (1,000 Knots) Max.
Acceleration Limit
Less Than 4g
Jerk Limit
20 m/sec3
Operating Temperature
-20° to 55° C
Power Source
Prime Power
Li-Ion Rechargeable Battery
Battery Capacity
2100 mA
Battery Life
17.5 HRS - 32.4 HRS Depending On Usage
LED Indicator
For Charging, GPS, GSM and Status
Antenna
GPS Antenna Type
Omni-directional GPS Antenna
External Antenna
MMCX
Physical Charateristics
Enclosure
Water Resistant (IPX4) Durable Polycarbonate
Dimension
3.41° x 1.92° x 1.27°
(86.7mm x 48.9mm x 32.5mm)
Weight
2.9oz (82.21g)
