Manta


AT-65-SMA

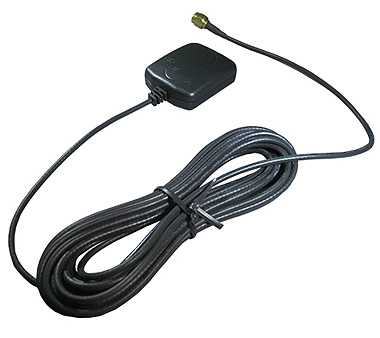

AT-65-SMA (USGlobalSat)
ID # AT65SMA    Reg. Price: $19.99     Our Price: $16.95


Antenna Specifications


Frequency: 1575.42+2 MHz
VSWR: 1.5 Max.
Bandwidth: 10 MHz Min.
Axial Ratio: 3 dB Typical

Impedance:

50ohm
Peak Gain: 4 dBic Min.
Gain Coverage: -4dBicat -90�~ 90�(over 75% volume)
Power Handling: 1 watt
Polarization: RHCP
Amplifier Module
Amplifier Gain without cable: 27 dB Typical
Noise Figure:
1.5 dB Typical
Filtering:
-25 dB (+ 100MHz)
Output VSWR:
2.0 Max.
Voltage:
DC 3 ~ 5.0V
Current:
22mA Max.@5VDC
Mechanical
Weight:
95 grams
Size: 1.77 x 1.46 x 0.51 inches (45 x 37 x 13 mm)
Cable:
RG174 15 Feet (4,572 mm long)
Connector:
SMA
Mounting:
Magnetic base
Environmental
Operating Temperature: < /span> - 104F - + 185F (- 40C ~ + 85C)
Storage Temperature: < /span> - 104F - + 185F (- 40C - + 85C)
Water Resistance:
IPX6
Vibration:
Sine Sweep, 1G(0-P),10-150-10Hz each axis



Specifications, price and availability are subject to change without notice.
Gross Weight: 1.2  lbs.
