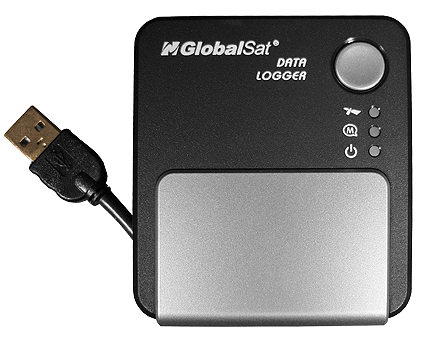

DG-100 Data Logger/ USB GPS Receiver
DG-100 Data Logger/ USB GPS Receiver (USGlobalSat)
ID # 100100    Reg. Price: $69.99     Our Price: $58.95

General:
The GlobalSat DG-100 GPS data logger can record travel data by using GPS signals. The DG-100 is completely self-contained batteries, a built-in antenna (there's also an external antenna port if you need it), and enough internal memory to log up to 50,000 waypoints. The DG100 records time, date, speed, altitude and GPS location at your preset intervals, which you can configure with the included utility software. Designed using the SiRF Star III chipset, the DG100 will provide accurate positioning and tracking for your application.

It can also doubles as a USB GPS receiver for your laptop!


DG100 package content

Package Contents: DG-100 main unit, Utilty on CD-ROM (WIN) & Belt Clip.

Recorded GPS data is then downloaded to your computer through it's USB port. With the included software utility (for WIN O/S/ only), user can easily export their recorded information in a variety of file formats such as .CSV, TXT and KML, for use on Google Earth and Google Maps.


Use the DG-100 in fleet management, marine navigational aids, traveling and recreational use.

DG-100 Features:

1. SiRF StarIII chipset 20 channels.

2. Store up to 50,000 waypoints.

3. Two (2) NiMh batteries for more than 20 hours continuous operation.

4. USB interface (includes WIN driver).

5. Power On/Off button for easy use.

6. Three preset record intervals (Time/Distance) selectable with slide switch.

7. Three LED's to show the status of GPS battery and memory.

8. MMCX port for optional external GPS antenna.

9. USB GPS receiver function for laptops.

10. Configuration Wizard helps with easy record interval configuration.

11. Metric or Imperial measurements

12. Windows based software utility to:

Upload recorded data

Change Recording Intervals

Configuration Settings

Delete Recorded Data

Exporting Recorded Data:

(1) Export and interface with Google Earth (.kml)

(2) Show recorded data on Google Maps

(3) Text format (.txt)

(4) Excel file format (.csv)

(5) NMEA183

Note: Incompatible with Windows 8


System Specification

GENERAL


GPS standard

SiRF StarIII

GPS Antenna

Built-in patch antenna

Operation time

Up to 24 hrs

Charge time

7 hrs

Battery Charging

USB connector @ 350mah

POWER BUTTON


Power On/Off

Press and hold for 3 second to On/Off the device.

Instant Save

Press button once to save a waypoint manually when

device is active.

STATUS LED'S


GPS status

Flashing Green = GPS position is fixed

Steady Green = GPS position is not fixed

Power status

Solid Red = Device power ON

Flashing Red = Device has low battery power

Solid Amber = Battery is charging

Memory status

Flashing Blue = Memory is 2/3 full

Solid Blue = Memory is full

TEMPERATURE


Operating

-20C ~ 50C (-4F ~ 122F)

Storage

-20C ~ 35C (-4F~ 95F)

Humidity

Operational up to 95% non-condensing

SLIDE SWITCH


One Slide Switch

There are three customized setting of intervals:

A (interval 1 Time or Distance selectable)

B (interval 2 Time or Distance selectable)

C (interval 3 Time or Distance selectable)

DATA CAPACITY


Waypoints

50,000 stored (stop record / overwrite data selectable)

BATTERY


Battery Type

(2) NiMh Rechargeable Batteries

MECHANICAL


Dimension

3.15" 2.75" x 0.7"

GPS Specification

Electrical Characteristics

GPS Chipset

SiRF Star III

Frequency

L1, 1575.42 MHz

C/A Code

1.023 MHz chip rate

Channels

20 channel all-in-view tracking

ACCURACY


Position Horizontal

10 meters, 2D RMS

1-5 meters 2D RMS, WAAS corrected

Velocity

0.1m/sec

Time

1 micro-second synchronized to GPS time

DATUM

Datum

Default: WGS-84

ACQUISITION RATE

Hot start

1 sec., average


Warm start

38 sec., average


Cold start

42 sec., average


Reacquisition

0.1 sec. average


PROTOCOL



GPS Protocol

Default: NMEA 0183 (Secondary: SiRF binary)

GPS Output

format

GGA(1sec), GSA(1sec), GSV(5sec), RMC(1sec), GLL,

VTG is optional

DYNAMIC CONDITION


Acceleration Limit

Less than 4g


Altitude Limit

18,000 meters (60,000 feet) max.


Velocity Limit

515 meters/sec. (1,000 knots) max.


Jerk Limit

20 m/sec**3




Specifications, price and availability are subject to change without notice.
Gross Weight: 3  lbs.
