  Garmin
GPS 18x-5Hz
high sensitivity WASS
enabled OEM GPS sensor for use in machine control,
guidance and agricultural applications that require 5 Hz
position and velocity reports. Small, highly
accurate GPS
receiver. |
 BU353-S4
USGlobalSat USB GPS receiver highly
sensitive, low power consumption chipset in a ultra
compact form factor. Powered by a SiRF Star IV GPS
chipset. Superior performance in urban canyons,
dense foliage.
|
GB-580P GPS Bike computer
by USGlobalSat. Slim sports
watch profile. High performance GPS chipset, high
resolution display with e-ink-like qualities under
sunlight, a "Trainer Mode",
|
GPS 16xLVS
Garmin GPS
sensor features a high-sensitivity receiver, integrated antenna and rugged,
waterproof
design that makes it useful for a variety of
OEM applications. |
 eXact Precision NV Scope Kit
2.6 x 44 eXact Precision night vision Scope can be used for multitude of applications including paintball, security surveillance or as a handheld monocular
|
Holzberg PX-555U
Compact Professional Portable UHF Two-Way Radio FM
Transceiver. 450 to 470MHz, 4 W, 16-chsnls.
|
 NONM3XG
- Night Owl Optics NexGen 3x Night Vision Scope. 500x Ambient light amplification, powerful Infrared Illumination,
|
 |
|
|
|

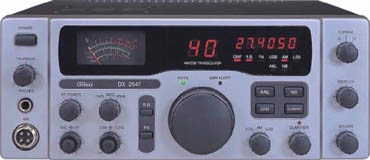

DX 2547 (Galaxy)
|
|
|
ID # 44
Reg. Price: $439.95
Our Price:
$339.95
|
|
Deluxe 40 Channel CB Base Radio AM, SSB
DX
2547
GALAXY
PREMIUM FEATURES:
- New
Style Midsize Chassis:
- 4-3/4"H x 11-1/4"W x
13-1/2"D - 12 lb.
- Operates on both AC and
DC
- Six
Digit Frequency Counter
- Large, easy-to-read
meter with 4 scales:
- "S" Meter indicates
up to 60 dB over S9
- Modulation
Percentage Scale for use on
AM
- Power Scale
Calibrated for AM and SSB
- SWR Scale
- Automatic SWR Circuit
(no complicated calibration
procedure)
- Talkback Circuit with
On/Off Switch and
Volume Control
- Variable Power Output
Control
- Roger Beep with On/Off
switch and LED Indicator
- Galaxy Noise Filter for
use on weak signals
- High SWR Alert LED
Indicator
- Instant Access to
Channel 9 or 19
- Receive Clarifier with
On/Off Switch
- Tone Control for
Receive
- Flip-Down Front
Feet
- Powered Pin on Mic
Jack
- Complete soft-cover
Service Manual including Schematic
Diagrams enclosed with each radio (in
addition to the standard operating
manual)
- Two Year
Warranty
ADDITIONAL
FEATURES:
- AM, SSB and PA
Modes
- LED Channel
Indicator
- Green/Red LED Indicator
for RX/TX
- 1/4" Headphone Jack on
Front Panel
- Jacks for PA and
External Speaker on Rear Panel
- Noise Blanker with
On/Off Switch
- Automatic Noise Limiter
with On/Off Switch
- Dimmer Control with
On/Off Switch
- Receive Gain
Control
- Mic Gain Control
- Handheld
Microphone
SPECIFICATIONS
GENERAL
|
|
|
Model
|
DX 2547
|
|
Frequency Range
|
26.965 - 27.405 MHz (40 Channels)
|
|
Emission Modes
|
AM/USB/LSB
|
|
Frequency Control
|
Phase Lock Loop (PLL) Synthesizer
|
|
Frequency Tolerance
|
0.005 %
|
|
Frequency Stability
|
0.001 %
|
|
Operating Temperature Range
|
-30ºC
to +50ºC
|
|
Microphone
|
Dynamic PTT, 500 Ohms
|
|
Input Voltage (DC/AC Selectable)
|
13.8V DC / 110V AC 60Hz
|
|
Current Drain: Transmit (AM full mod.)
|
< 3.5A
|
|
Current Drain : Receive (Squelched)
|
0.5A
|
|
Current Drain : Receive (Max. audio
output)
|
< 1A
|
|
Antenna Connector
|
UHF; SO239
|
|
Dimensions
|
4-3/4"H x 11-1/4"W x 13-1/2"D
|
|
Weight
|
12 lb.
|
|
|
|
TRANSMITTER
|
|
|
RF Power Output
|
AM : 4W / SSB : 12W PEP
|
|
RF Transmit Modes
|
AM/SSB
|
|
Modulation
|
High and Low level Class B, Amplitude
Modulation : AM and SSB
|
|
Spurious Emissions
|
-60 dB
|
|
Carrier Suppression
|
-60 dB
|
|
Audio Frequency Response
|
300 to 2500 Hz
|
|
Antenna Impedance
|
50 Ohms
|
|
Output Indicators
|
Meter shows relative signal strength,
RF output power, SWR and AM Modulation
level. Transmit LED glows red when
transmitter is in operation.
|
|
|
RECEIVER
|
|
|
Sensitivity for 10dB S/N (AM/ SSB)
|
< 0.5 mV
/ < 0.15 mV
|
|
IF Frequency
|
AM: 10.695 MHz 1st IF, 455 KHz 2nd IF
|
|
Image Rejection
|
-50 dB
|
|
Adjacent Channel Selectivity
|
-60 dB
|
|
RF Gain Control
|
45 dB adjustable for optimum signal
reception
|
|
Automatic Gain Control (AGC) Figure of
Merit
|
100 mV for 10 dB Change in Audio Output
|
|
Squelch
|
Adjustable; threshold less than 0.5
mV
|
|
Noise Blanker
|
RF type
|
|
Audio Output Power
|
2.5W @ 10% THD
|
|
Audio Frequency Response
|
300 to 2500 Hz
|
|
Built-in Speaker
|
8 Ohms, 4 Watts
|
|
External Speaker (Not Supplied)
|
8 Ohms, 4 Watts
|
|
Specifications, price and availability are subject to change without notice.
Gross Weight: 20 lbs.
|
|
|
|
