Manta

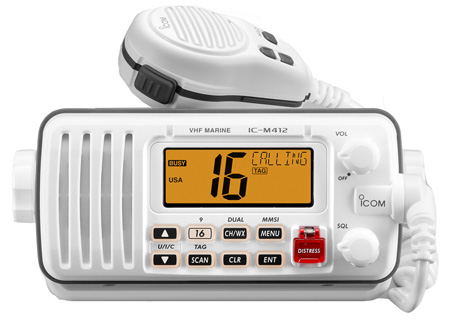

IC-M412 White
No Longer Available    IC-M412 White (ICOM)
ID # M412-12


Description:

It's a no-nonsense radio that offers superior performance and reliability, and has the features most boaters want. There may be cheaper radios, but you get what you pay for. Out on the water, we don't think a radio's the right place to skimp.

Features

  • Built-in Class D DSC
  • IPX7 submersible protection (1m depth for 30 minutes, except cables)
  • Superior receiver sensitivity, superior speaker audio
  • Large LCD and simple operation
  • Common GPS/NAV interface
  • AquaQuakeT draining function
  • Weather channel receive with alert function
  • Favorite channel function
  • Dualwatch and Tri-watch functions

    Class D digital selective calling
    The built-in Class D DSC provides additional safety at sea. The built-in DSC watch function monitors Ch 70 (DSC channel) activity, even while you are receiving another channel. Distress, individual, group, all ships, position request/reply, polling request/reply and DSC test calls can be sent. DSC messages can be received and automatically stored in the message memory.
  • Learn how to register your DSC radio

    MA-500TR AIS transponder compatible
    When connected to Icom's MA-500TR Class B AIS transponder, you can make an individual DSC call without having to manually input a MMSI number.

    IPX7 submersible protection
    The IC-M412 can withstand submersion in 1m of water for up to 30 minutes (except cables). The supplied microphone also has submersible protection.

    Easy to see large display
    The large backlit LCD (23.5 (H) x 64 (W) mm; 15/16 x 2 17 / 32 in) shows a full sized channel number. A 10 character scrolling message shows the channel name and can show position, time and DSC messages.

    Common GPS/NAV interface
    When connected to an external GPS receiver, current position and time are shown on the IC-M412's display. When receiving position information from another vessel, the IC-M412 can transfer it to a navigational device via NMEA 0183 connectivity.

    Superior receiver sensitivity, superior speaker audio
    The IC-M412 has 0.22fV (typical at 12dB SINAD) superior sensitivity for class-leading receiver performance. The front facing speaker offers 4.5W (typical) of loud, clear reception.

    Quick Specifications:

    Channels - Available All US, Canadian, International
    DSC Class D
    Hailer/Intercom N/A
    Power - Output (Watts) 25 watts
    Remote Mic Capable No
    Scrambler Capable No
    Waterproof Rating Submersible
    Weather Alert Yes
    Box Dimensions 5"H x 10"W x 10"L WT: 3.8lbs
    UPC 731797008961
    Brochure View (pdf)
    Owners Manual View (pdf)
    Quick Guide View (pdf)

    Specifications

    General
    Frequency range Tx: 156.025157.425 MHz
    Rx: 156.050163.275 MHz
    Ch. 70: 156.525 MHz
    Usable channel groups USA, CAN, INT, WX channels
    Type of emission 16K0G3E, 16K0G2B
    Antenna impedence 50Ω (SO-239)

    Operating temperature range

    -20C to +60C

    -4F to +140F

    Power supply requirement

    13.8V DC 15%

    Current drain (at 13.8V DC)
    Tx:
    Rx:

    5.5A (at 25W output)
    1.5A (at AF max.)

    Weight (approx.)

    1060g; 2.3lb

    Dimensions
    (WHD, projections not included)
    164 78 139.5mm;
    6 1532 3 116 5 12in.
    NMEA formats
    Input
    Output

    RMC, GGA, GNS, GLL
    DSC, DSE
    Receiver
    Sensitivity

    0.22μV typical at 12dB SINAD

    Squelch sensitivity

    Less than 0.4μV

    Adjacent Ch selectivity More than 70dB

    Spurious response

    More than 70dB

    Intermodulation More than 70dB
    Hum and noise More than 40dB

    Audio output power

    4.5W typical at 10% distortion with a 4Ω load
    Transmitter
    Output power

    25W/1W (Hi/Low)

    Max. freq. deviation 5.0kHz
    Frequency tolerance 10ppm
    Spurious emisions Less than 70dBc (at 25W)
    Adj. channel power More than 70dB
    Residual modulation More than 40dB
    Audio harmonic distortion Less than 10% (at 60% dev.)

    Color version:

    • White

    Supplied accessories

    • Hand microphone
    • Mounting bracket kit
    • DC power cable

    All stated specifications are subject to change without notice or obligation. Measurements are made in accordance with TIA/EIA 603.
